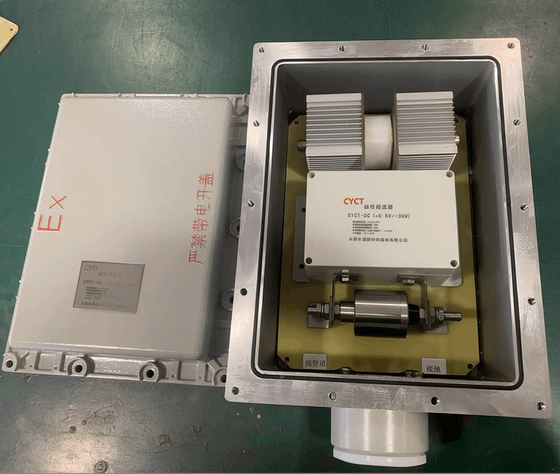

Polarized Drainage Device for Areas with Severe Stray Current Interference
Core Features
-
AC-DC Mixed DrainageSimultaneously drain AC stray currents from high-voltage power lines and DC stray currents generated by subways, bidirectionally block corrosion currents, and accurately mitigate composite interference.AC-DC Mixed Drainage -
Direct Lightning ProtectionIntegrated spark gap lightning protection structure can withstand direct lightning impulse current to prevent lightning damage to pipelines and equipment.Direct Lightning Protection -
Potential Isolation ProtectionEffectively isolate the cathodic protection potential of pipelines, prevent loss of protective current, and maintain stable operation of the cathodic protection system.Potential Isolation Protection
Product Certification
The product has passed authoritative tests conducted by the Cathodic Protection Testing Center of CNPC and Sinopec, as well as electrical equipment testing institutions for the power industry. It complies with standards including SY/T 0017 and GB/T 21448, and is suitable for high-risk projects such as oil & gas, power and railway engineering.
Construction Instructions
1. Installation Preparation: Check appearance and electrical parameters; prepare brackets, copper busbars and bolts.
2. Bracket Fixing: Install horizontally and firmly outdoors with wind and seismic resistance.
3.Equipment Fixing: Securely mount the drainage device to prevent loosening.
4. Electrical Connection: Connect positive terminal to pipeline and negative terminal to ground electrode; ensure reliable connection of copper busbars.
5. Inspection & Commissioning: Perform continuity and insulation tests, and verify performance under simulated interference.
6.Sealing Protection: Waterproof all connections; provide rainproof and sunproof protection for outdoor application.
