Products and Services Adhesive Product SeriesCT-S2250 Addition Cure Silicone Sealant

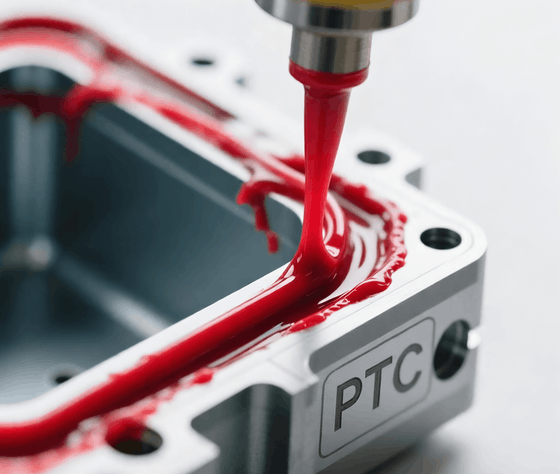

CT-S2250 Addition Cure Silicone Sealant

CT-S2250 is a reinforced two-component additive silicone adhesive sealant. When used,the two components will solidify into a red flexible elastomer after being mixed evenly in a 1:1 weight ratio or mass ratio

Want to learn more about the solutions? Want to see the complete case study?

Core Features

Long-term Sealing & Protection

Fill various gaps, block the intrusion of moisture, dust and corrosive media to achieve long-lasting sealing.

Long-term Sealing & Protection
Elastic Bonding & Fixation

The flexible elastomer firmly bonds metals, ceramics, glass and other materials, and cushions vibration as well as thermal expansion stress.

Elastic Bonding & Fixation
Electrical Insulation Protection

Forms a high-insulation protective layer to prevent short circuits and improve the safety and reliability of electrical equipment.

Electrical Insulation Protection

Features

Flexible curing & easy operation

Simple 1:1 mixing ratio; cures in 12 hours at room temperature or rapidly in 30 minutes at 80°C, compatible with various production cycles
Stable elasticity under wide temperature range

Maintains elasticity under extreme temperatures ranging from -60℃ to 200℃, free of cracking and embrittlement, and resistant to vibration and impact.
Strong Adhesion, Insulation & Weather Resistance

It delivers outstanding adhesion to aluminum alloy and other substrates, with dielectric strength ≥20kV/mm. Featuring excellent aging resistance and medium resistance, its red elastomer enables easy quality inspection identification.

Technical Parameters

	Item		Unit	Standard
Before solidification	Appearance	A Component		White paste
	Appearance	B Component		Red fowing fuid
	Viscosity	A Component	MPa ·s	50000±5000
	Viscosity	B Component	MPa ·s	30000±5000
	Mixing ratio		A:B	1:1
	Gel time 25°℃		min	10±5
	Curing timee 25°℃		h	12
	Curingtime 80°℃		h	0.5
After solidification	Density		g/cm³	1.10±0.05
	Hardness		Shore A	30±5
	Tensile strengh		MPa	≥3.5
	Elongation at break		%	≥350
	Lap shear strengh		MPa	≥2.5
	Dielectric constant 50Hz			≤3.2
	Los factor 50Hz			≤0.005
	Volume restiviy		Ω ·cm	≥1.0×10⁵
	Elecric strength		kVmm	≥20

Swipe Left or Right to View the Full Table

Application Areas

New Energy Electrical

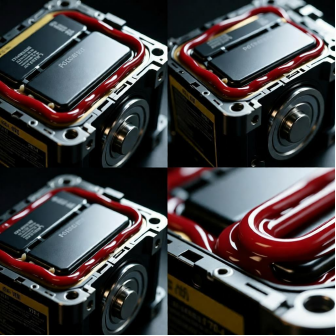

Sealing and bonding for battery modules, power enclosures, charging piles and electrical boxes
Industrial Equipment

Sealing and fixing of instruments, sensors, pipe flanges and shock-absorbing components
Transportation & Construction

Moisture-proof sealing and bonding for automotive and rail transit components, as well as outdoor lamps

Want to Learn More About These Application Scenarios?

Specifications

1.40kg/barrel (component A:20kg/barrel,component B:20kg/barrel)
2.Can be customized according to customer needs

Storage and Transportation

1.Store in a cool,dry,and dark place below 25℃,sealed for preservation;
2.This product is a non flammable and non explosive material that can be transported as a general chemical.During transportation,it should be protected from exposure to sunlight,compression,and collision to prevent leakage;
3.The shelf life of this product is 6 months.
